Drainage Related Services in Construction Breakdown

Drainage is the very essense of groudnwork, it is the simplest and purest form of gorundwork there could be. The goal of it being to redirect water to a specific place through a specific route by avoiding the things or places you do not want water to go through.

But why is it so important?

For example a building or any infrastructure project without effective drainage system, will face accelerated deterioration due to water damage over the years.

Which have down stream cost effects as more money will need to be spent on maintanace and repair if anything will be damaged. Also the structure along side the drainage will last longer and serve a lifetime!

Therefore drainage should never be overlooked, a lasting project is one that has a good drainage.

This article will teach you what drainages exist and which one you should use in what scenario, let's begin!

We are going to go through each one accordingly:

Surface Drainage

• Grading & Sloping
• Open Drains / Ditches
• Swales
• Catch Basins
• Channel Drains / Trench Drains
• Grates

Subsurface Drainage

• Foundation / Footing Drains
• French Drains
• Perforated Pipe Systems (Tile Drains)
• Interceptor Drains
• Subdrains

Grading & Sloping

Grading and sloping is the foundational technique of shaping the ground to create a gentle slope that directs surface water away from structures toward desired collection or discharge points.

It is most commonly used in almost every construction project from residential yards and building sites to roads and landscaping and especially during the initial site preparation phase.

Pros: Very cost-effective, requires no additional materials, allows natural water flow, and prevents ponding when done correctly.

Cons: Can be limited by site topography, may need periodic re-grading due to soil settlement, and is less effective in very flat areas or during heavy rainfall.

Open Drains / Ditches

Open drains or ditches are excavated open channels that carry surface water away from an area.

They are typically used in rural, agricultural, or large undeveloped sites where high volumes of runoff need simple, large-capacity management.

Pros: Inexpensive to install, handle large water volumes, easy to inspect and maintain.

Cons: Can collect debris and require regular cleaning, may pose safety hazards, and are not suitable for urban or high-traffic areas due to aesthetics and space requirements.

Swales

Swales are shallow, broad, vegetated depressions designed to slow, collect, infiltrate, and filter stormwater runoff. They are commonly used in sustainable landscaping, green infrastructure, roadsides, and residential developments where environmental benefits are prioritized.

Pros: Promotes natural infiltration, reduces erosion, improves water quality through filtration, and looks attractive when planted.

Cons: Requires space, needs vegetation maintenance, less effective in poorly draining soils or steep slopes, and can become saturated in prolonged wet conditions.

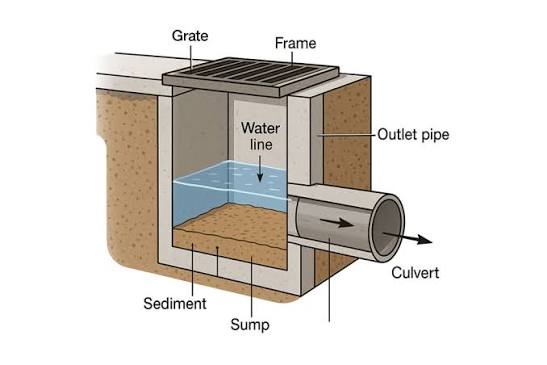

Catch Basins

Catch basins are underground structures with grated inlets that collect surface water and direct it into underground pipes. They are widely used in paved urban areas such as parking lots, streets, driveways, and plazas.

Pros: Efficient at capturing sheet flow, integrates well with storm sewer systems, and helps prevent flooding in developed areas.

Cons: Can clog with debris if not maintained regularly, more expensive than basic grading, and requires connection to a larger drainage network.

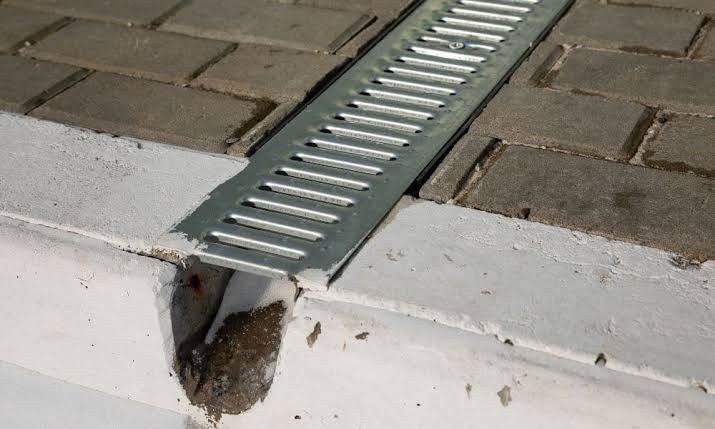

Channel Drains / Trench Drains

Channel drains, also known as trench drains, are long, narrow surface channels that collect and remove water across a linear area. They are ideal for driveways, patios, walkways, pool decks, and areas with concentrated sheet flow.

Pros: Highly effective for linear drainage, discreet when installed flush with the surface, handles heavy traffic when properly rated, and quickly removes water.

Cons: Higher installation cost, can become blocked if grates are not cleaned, and requires proper slope and outlet connection.

Grates

Grates are protective covers placed over drains, basins, or channels to allow water entry while blocking debris and providing safety. They are used in combination with almost all other surface drainage systems in areas with pedestrian or vehicle traffic.

Pros: Prevents large debris entry, improves safety, available in various materials and load ratings.

Cons: Can become slippery when wet, require regular cleaning to avoid clogging, and add to overall system cost.

Subsurface Drainage

Foundation / Footing Drains

Foundation or footing drains are perforated pipes installed around the base of building foundations to collect and redirect groundwater away from the structure.

They are essential for any building with a basement or in areas with high groundwater tables.

Pros: Protects foundations from water damage, prevents basement flooding, relatively straightforward to install during construction.

Cons: Difficult and expensive to repair after construction, requires an outlet point, and may need pumping in very low areas.

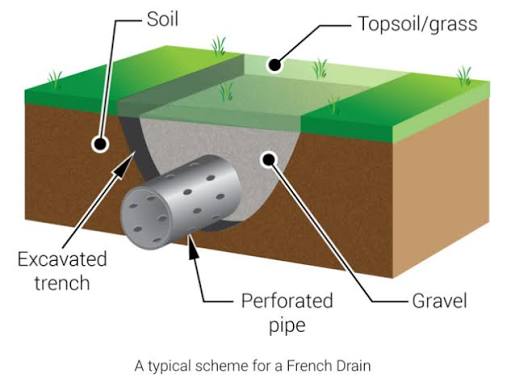

French Drains

French drains consist of a perforated pipe surrounded by gravel and fabric, buried in a trench to collect and move subsurface water.

They are versatile and commonly used around foundations, retaining walls, yards, and low-lying wet areas.

Pros: Very effective at lowering local water tables, flexible for many site conditions, long-lasting when properly installed.

Cons: Can clog over time if fabric fails, requires excavation, and needs a proper outlet for discharged water.

Perforated Pipe Systems (Tile Drains)

Perforated pipe systems (often called tile drains) are networks of buried perforated pipes that drain excess subsurface water from large areas.

They are primarily used in agricultural fields, sports fields, and large poorly-draining sites.

Pros: Excellent for large-scale water table control, improves soil usability and plant growth, durable over many years.

Cons: High initial installation cost for large areas, difficult to modify later, and requires careful design and outlet management.

Interceptor Drains

Interceptor drains are subsurface systems placed to capture and redirect water flowing from higher elevations before it reaches protected areas.

They are commonly used uphill from buildings, roads, or sensitive zones.

Pros: Prevents unwanted water intrusion into critical areas, effective as a protective barrier.

Cons: Requires accurate site assessment, may need combination with other systems, and involves trenching.

Subdrains

Subdrains are smaller supplementary drainage pipes installed beneath main systems or in specific problem spots to provide extra relief. They are used to support primary drainage in complex sites or localized wet zones.

Pros: Targets specific trouble areas efficiently, enhances overall system performance.

Cons: Adds complexity and cost, requires precise placement and integration with main drains.
